G610 Series Back Mount Redline Sight Gage - Front Viewing
Additional Product Information

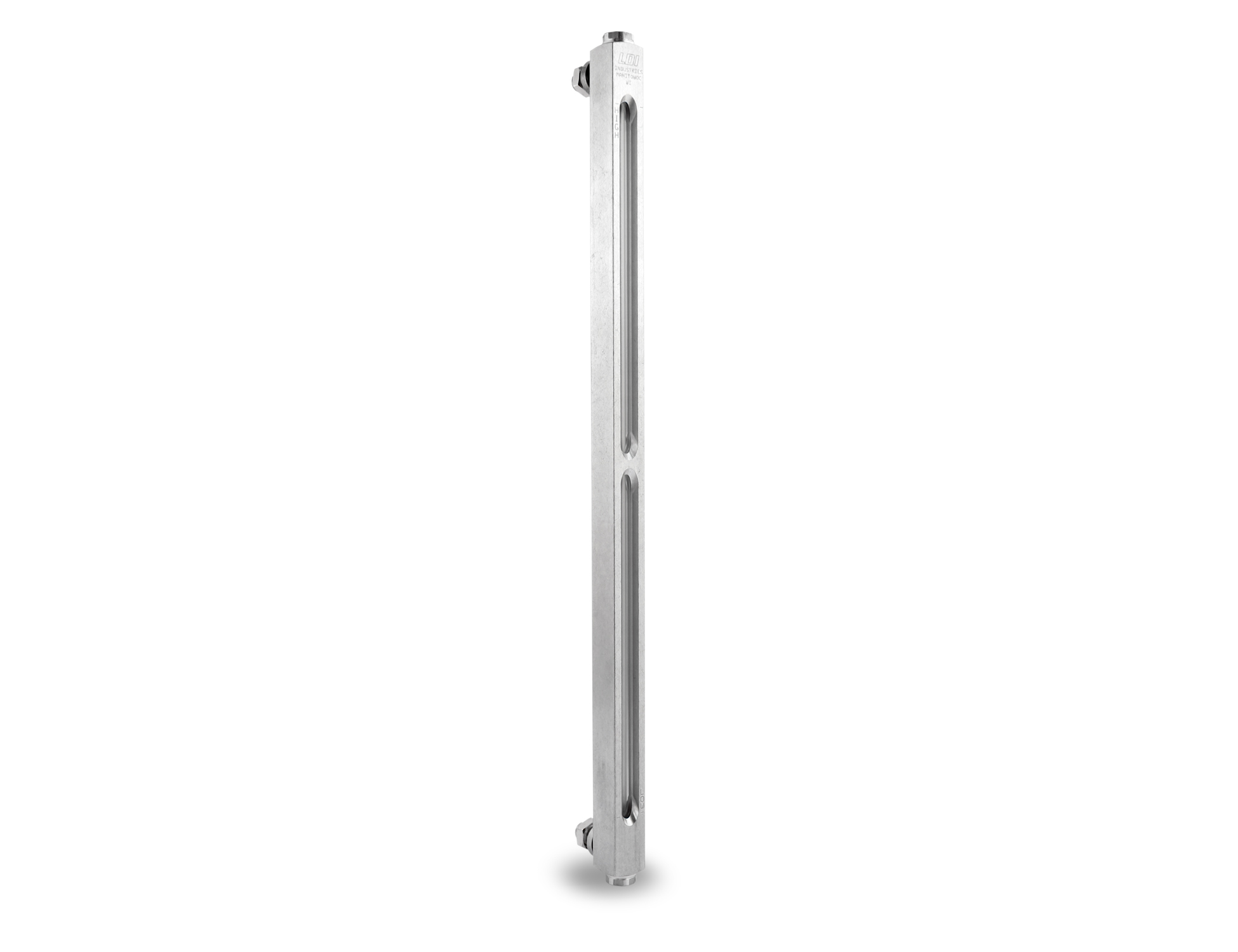

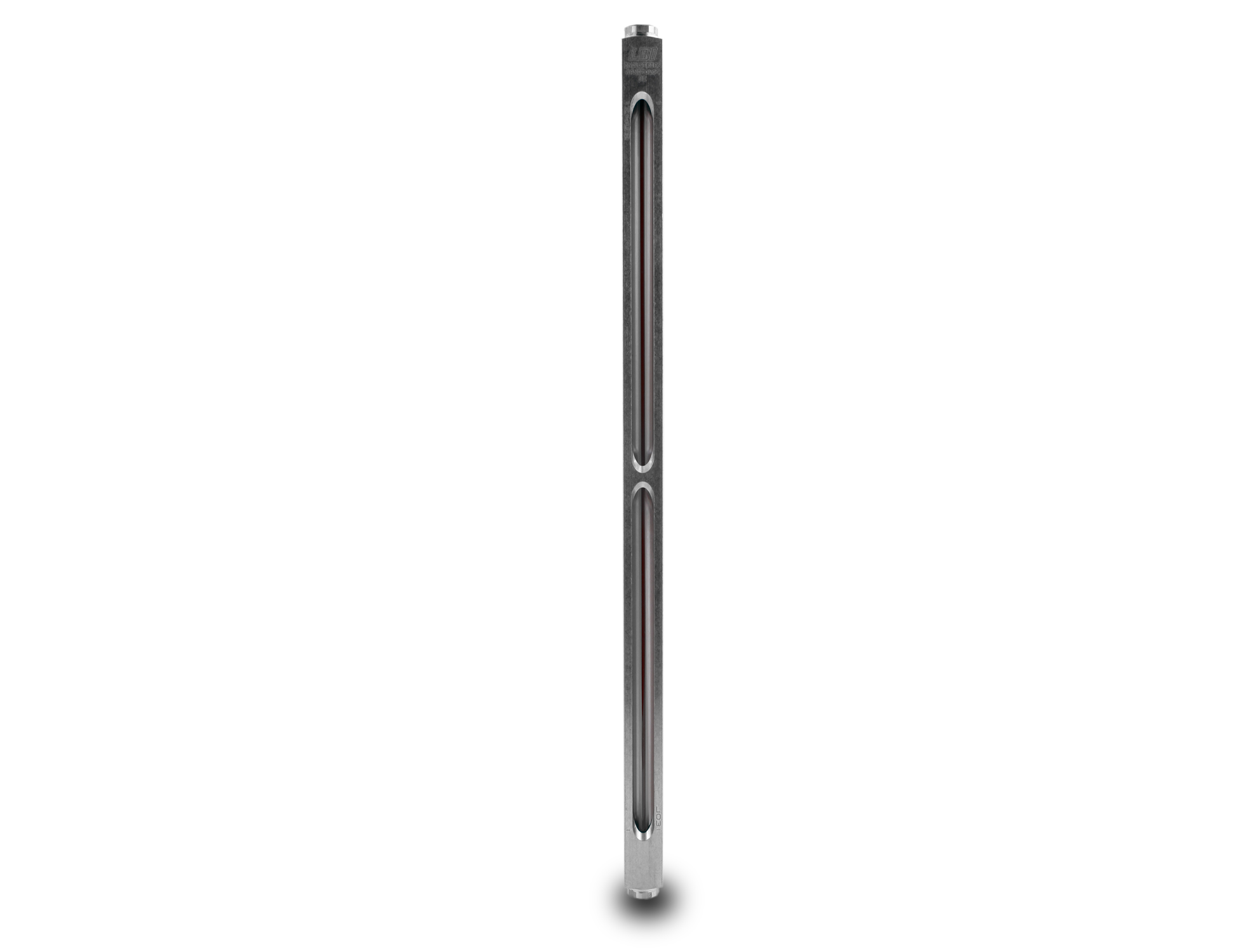

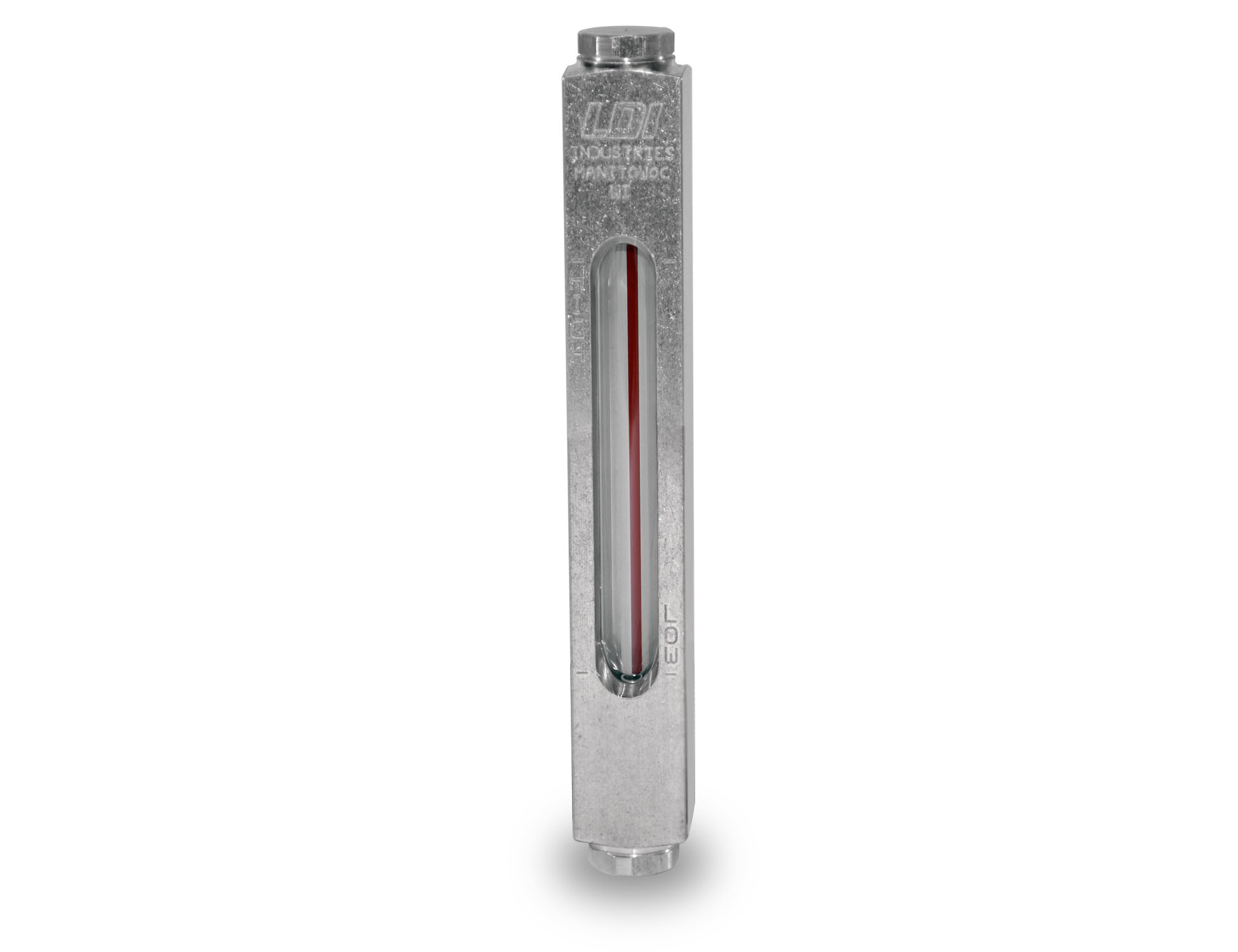

The G610 Series back mount closed circuit sight gages provide front viewing of the fluid level clearly delineated by a redline on white background integral to the sight glass all secured within an aluminum body. HIGH-LOW markings are stamped into the aluminum body.
Standard Features:
- Centerline lengths from 3 to 12 inches
- Back mount
- .90 inch SQ body machined from extruded aluminum bar stock
- Fluid level visible from front of gage (.50 inches wide)
- Viewing enhanced by redline on white background integral to sight glass
- HIGH-LOW markings on aluminum body

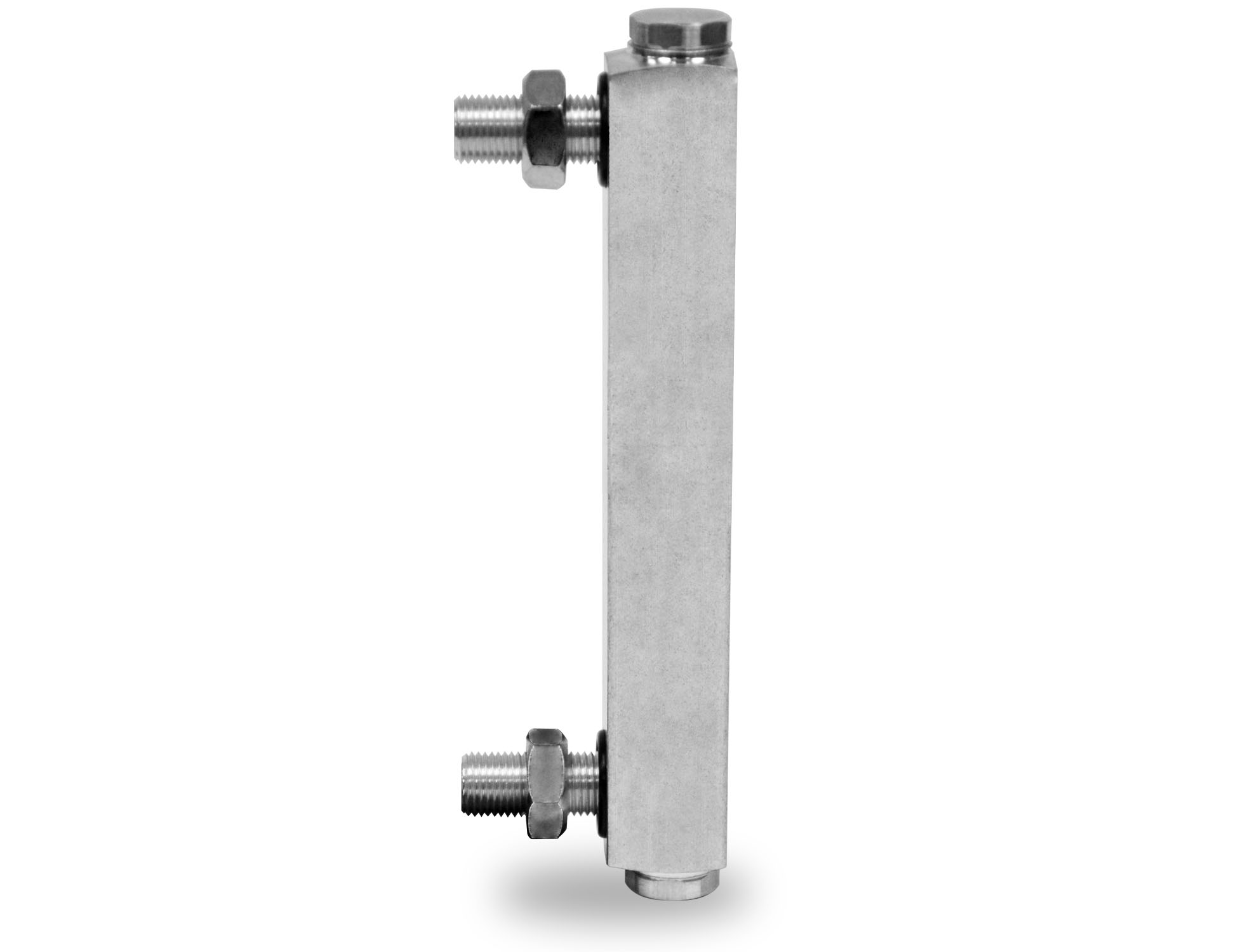

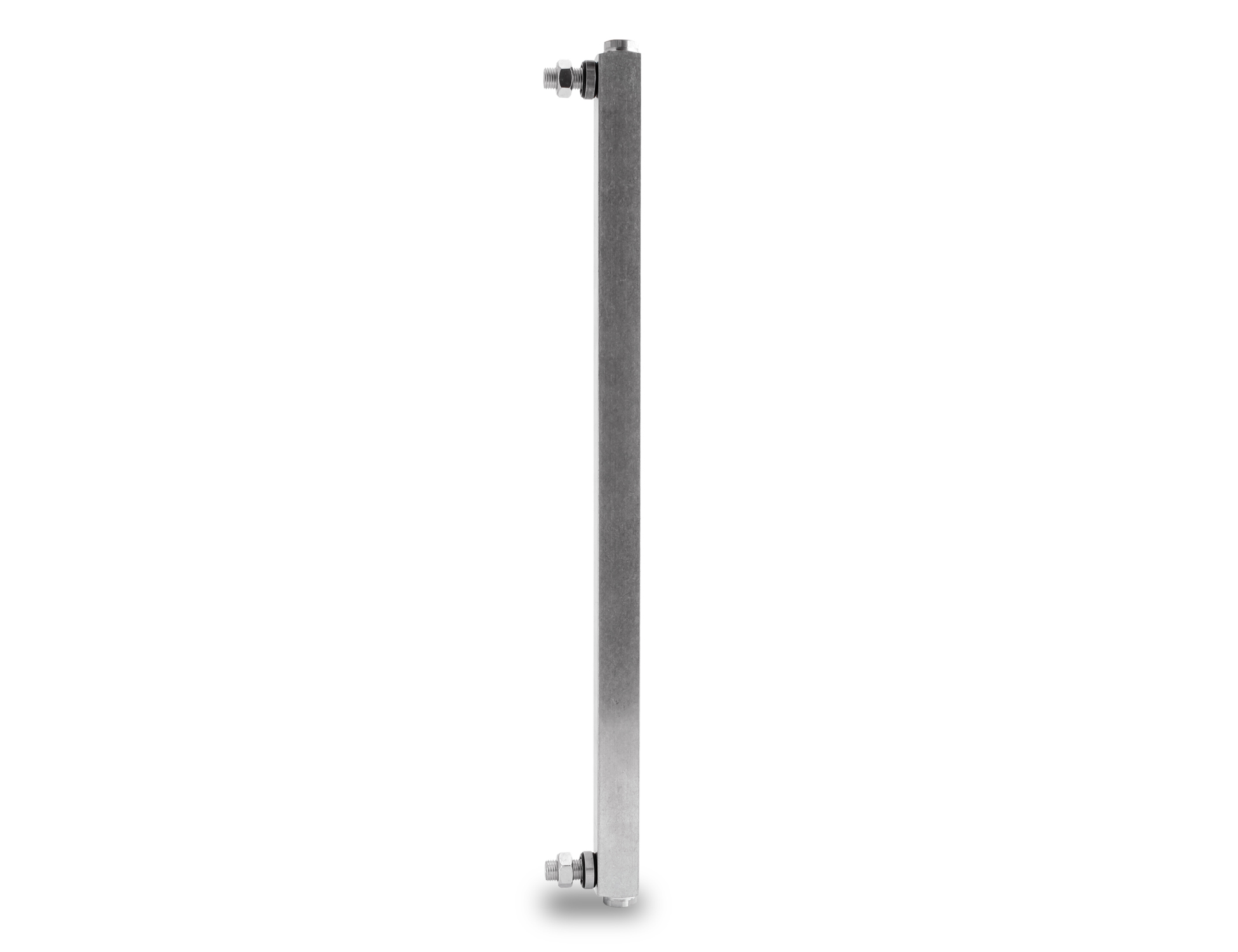

- 1/2-20UNF mounting studs accommodate reservoir wall thicknesses up to .75 inches
- Suitable for use with most hydraulic and machine lubricating oils
Access to inside of reservoir is required to mount this style sight gage.
Standard Materials:
- Aluminum construction
- Buna N seals
- Borosilicate glass sight
- Zinc plated, steel hex nuts
Caution:
- Not recommended for use with steam, acidic fluids, caustic fluids and volatile fluids.
- If aluminum construction is selected for a water application, anodizing is recommended.
Product Options
Common Modifications Available
- Body Material: Brass, Stainless Steel or Carbon Steel
- Seal Material: Butyl, Fluorocarbon (Viton®), Ethylene Propylene (EPDM) or Neoprene
- Centerline lengths
Custom Modifications Available
- Sight Options: Polycarbonate or Clear Borosilicate (Ball Float Indicator)
- Surface Treatments: Clear/Color Anodize, Zinc, Nickel or Chrome Plate
- Fluid Level Markings: Custom Text, ISO Symbols or No Markings
- Mounting Bolt Threads: 1/2-13UNC, M12x1.75 or M10x1.50
- Viewing Direction: Right, Left, Front or Any Combination, Corner Viewing
- Backup conical sleeve (cylindrical reservoir applications)
Minimum quantities may apply.
