GAT603 Series Front Mount Flexible Vinyl Sight Gage - 360° Viewing With Dial Thermometer and Pipe Adapters
View Larger
Additional Product Information

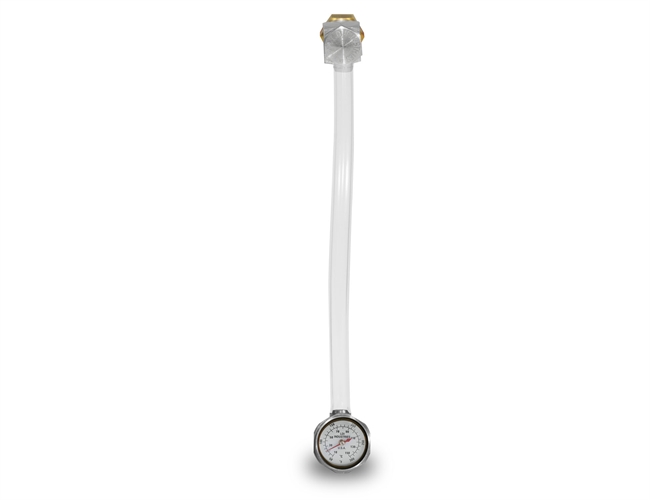

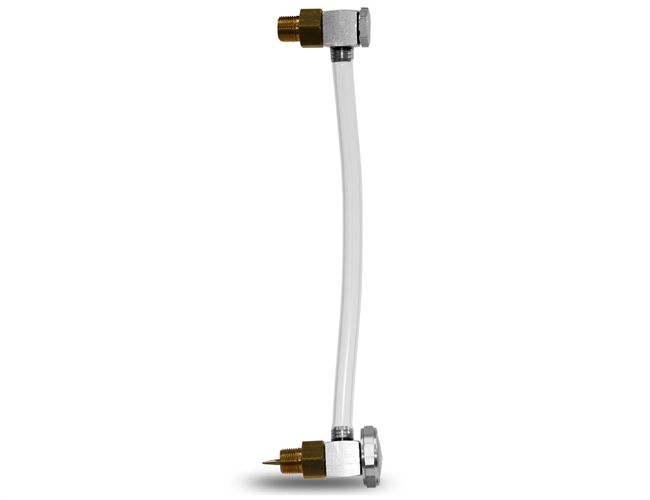

The GAT603 Series front mount closed circuit sight gage is mounted securely with end blocks made from aluminum. These end blocks are connected with a clear, flexible tubular vinyl sight providing 360° viewing of the fluid level. The flexible vinyl sight bends easily to conform to irregular or cylindrical shaped reservoir bodies. A wetted dial thermometer provides direct reading of the fluid temperature and pipe adapters are provided with the gage for mounting directly to NPT couplings.
Standard Features:
- Centerline lengths from 3 to 12 inches
- Front mount
- .88 inch square end blocks machined from aluminum bar stock
- .50 inch diameter tubular sight
- 360° of viewing fluid level
- 1.38 inch diameter dual scale dial thermometer, 50° to 300°F and 10° to 150°C
- 1/4, 3/8, 1/2 or 3/4 inch NPTF pipe adapters machined from brass bar stock
- Suitable for use with most hydraulic and machine lubricating oils
Standard Materials:
- Aluminum end blocks and mounting bolts
- Brass pipe adapters
- Vinyl tubular sight
- Buna N seals
Caution:
- Not recommended for use with water, steam, acidic fluids, caustic fluids and volatile fluids
- Reservoir must be drained to remove dial thermometer or loss of fluid will occur
Temperature & Pressure Ratings
- 150°F (65°C) maximum operating temperature
- 5 psi (34 kPa) maximum operating pressure
Product Options
Common Modifications Available
- End blocks made from brass material
- Seal Material: Butyl, Fluorocarbon (Viton®) or Ethylene Propylene (EPDM)
- Centerline lengths [600 inch (15,240 mm) maximum]
Minimum quantities may apply.
Related Products
The flexible vinyl sight is offered on several other products that may offer features better suited for your application.
When your reservoir geometry provides a straight wall for mounting the sight gage, LDI offers a rigid nylon sight gage, GA613 Series, with the same viewing angle and pipe thread connections less the dial thermometer.
If your application exceeds the capabilities of vinyl and nylon, consider metallic LDI products designed for viewing or monitoring fluid media.
Your fluid storage system is not complete until you define the reservoir. Off-the-shelf or customized to your specifications, consider LDI your source for:
