GA613 Series Front Mount Rigid Nylon Sight Gage - 360° Viewing With Pipe Adapters
View Larger
Additional Product Information

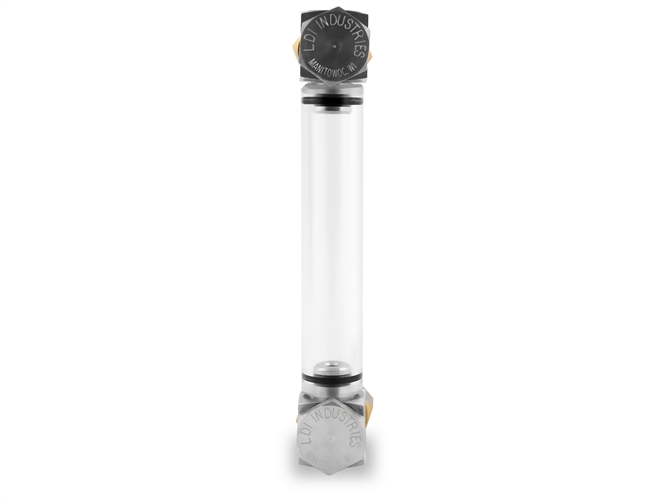

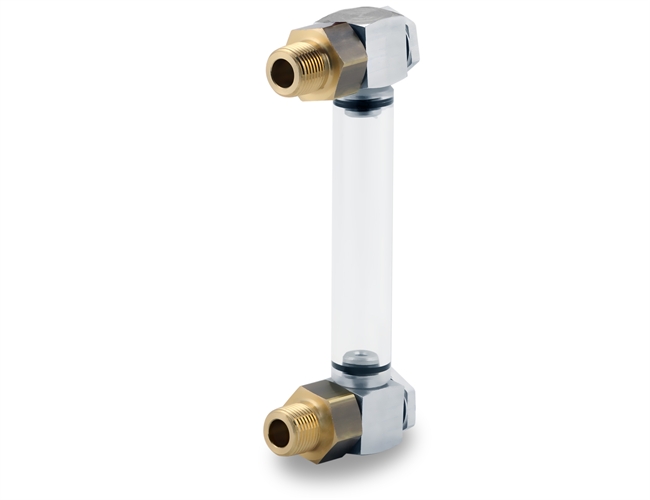

The GA613 Series front mount closed circuit sight gage is mounted securely with end blocks made from aluminum. These end blocks are connected with a clear, rigid tubular nylon sight providing 360° viewing of the fluid level. The nylon sight combines rigidity with break resistant toughness. Pipe adapters are provided with the gage for mounting directly to NPT couplings.
Standard Features:
- Centerline lengths from 3 to 12 inches
- Front mount
- .88 inch square end blocks machined from aluminum bar stock
- .81 inch diameter tubular sight
- 360° of viewing fluid level
- 1/4, 3/8, 1/2 or 3/4 inch NPTF pipe adapters machined from brass bar stock
- Suitable for use with most hydraulic and machine lubricating oils
Standard Materials:
- Aluminum end blocks and mounting bolts
- Brass pipe adapters
- Nylon tubular sight
- Buna N seals
Caution:
- Not recommended for use with diesel fuel, gasoline, ethylene glycol (antifreeze), polyglycols, ethyl alcohol, methyl alcohol, methyl ethyl ketone(MEK), acetone, isopropanol, water exceeding 194°F (90°C), steam, acidic, caustic and volatile fluids
Temperature & Pressure Ratings
- 225°F (107°C) maximum operating temperature
- 125 psi (862 kPa) maximum working pressure at 70°F (21°C)
Product Options
Common Modifications Available
- End blocks made from brass material
- Seal Material: Butyl, Fluorocarbon (Viton®) or Ethylene Propylene (EPDM)
- Centerline lengths [72 inch (1828 mm) maximum]
Custom Modifications Available
- Machined Fluid Level Lines
- Pipe adapters with thermometer (GAT613 Series)
- Pipe adapters with needle valves (GNV613 Series)
Minimum quantities may apply.
