G608 Series Front Mount Redline Sight Gage - Front Viewing With Needle Valve Pipe Adapters
Additional Product Information

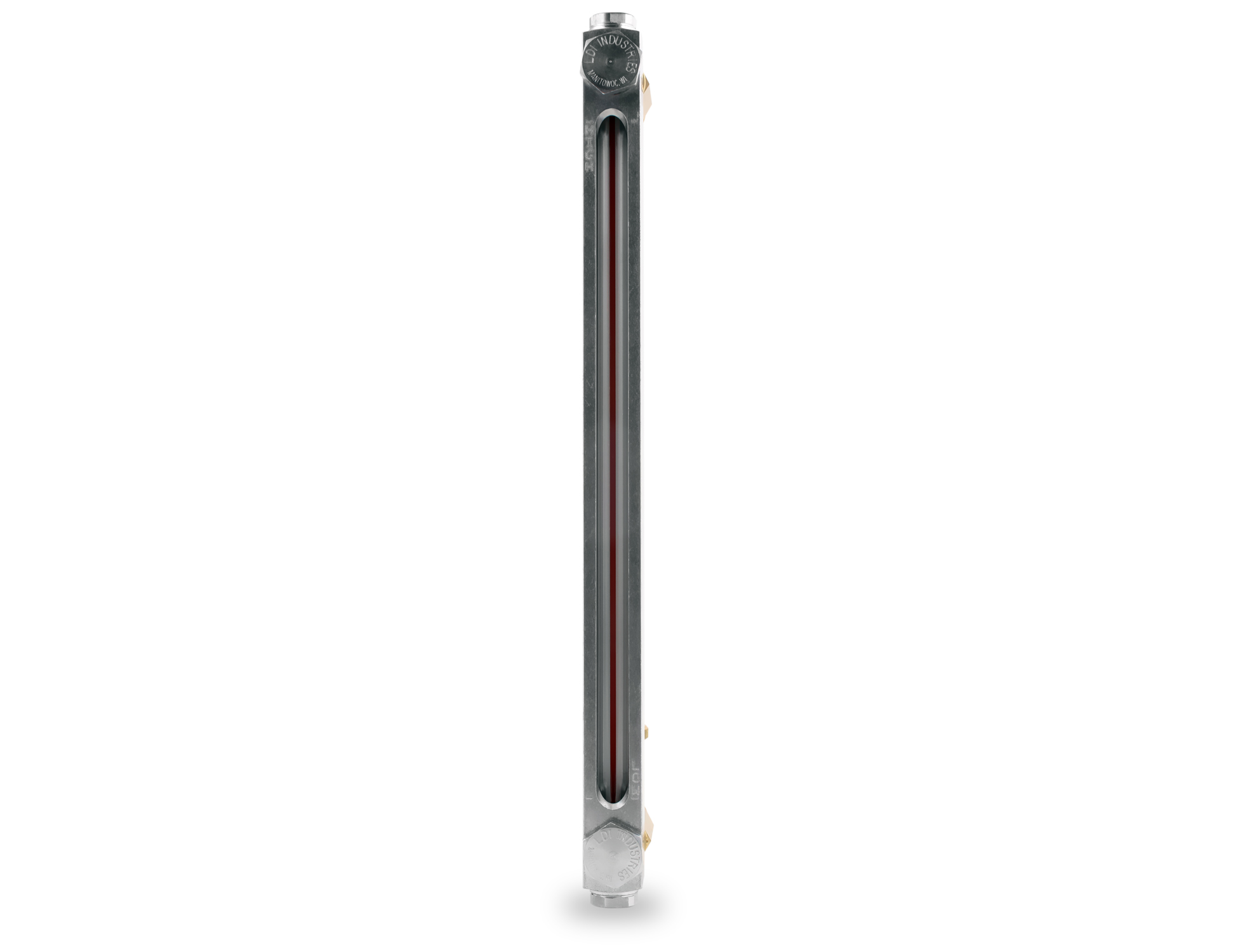

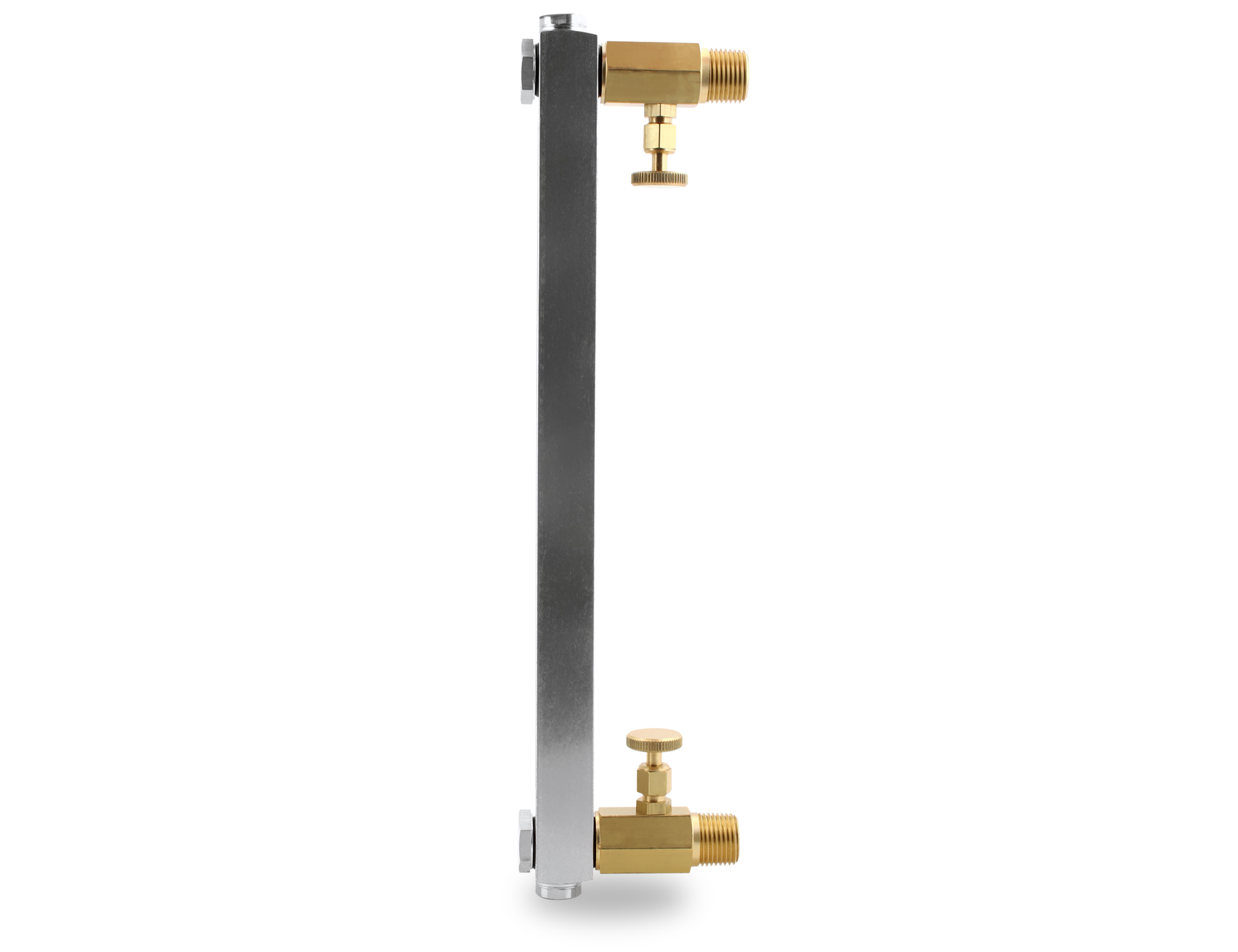

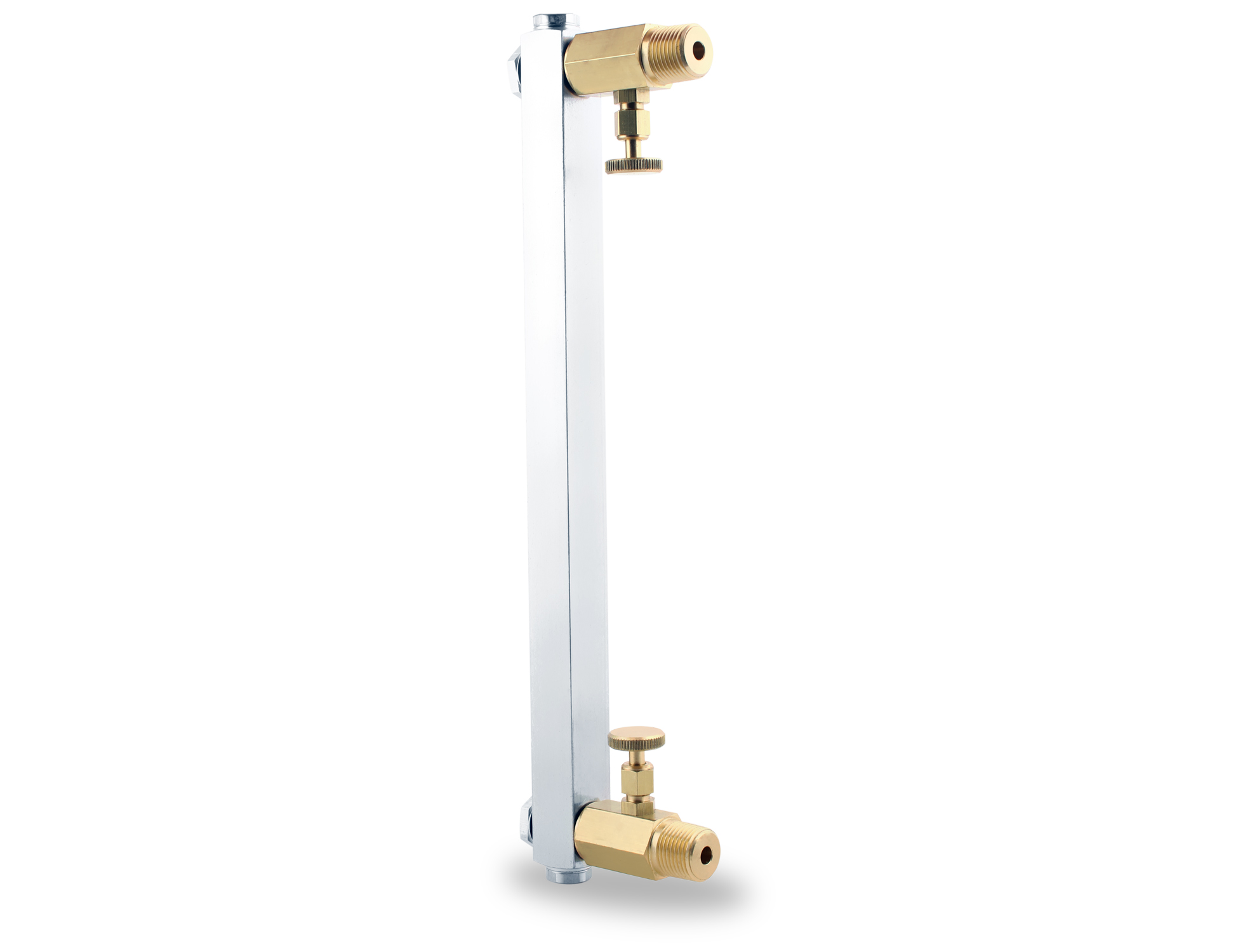

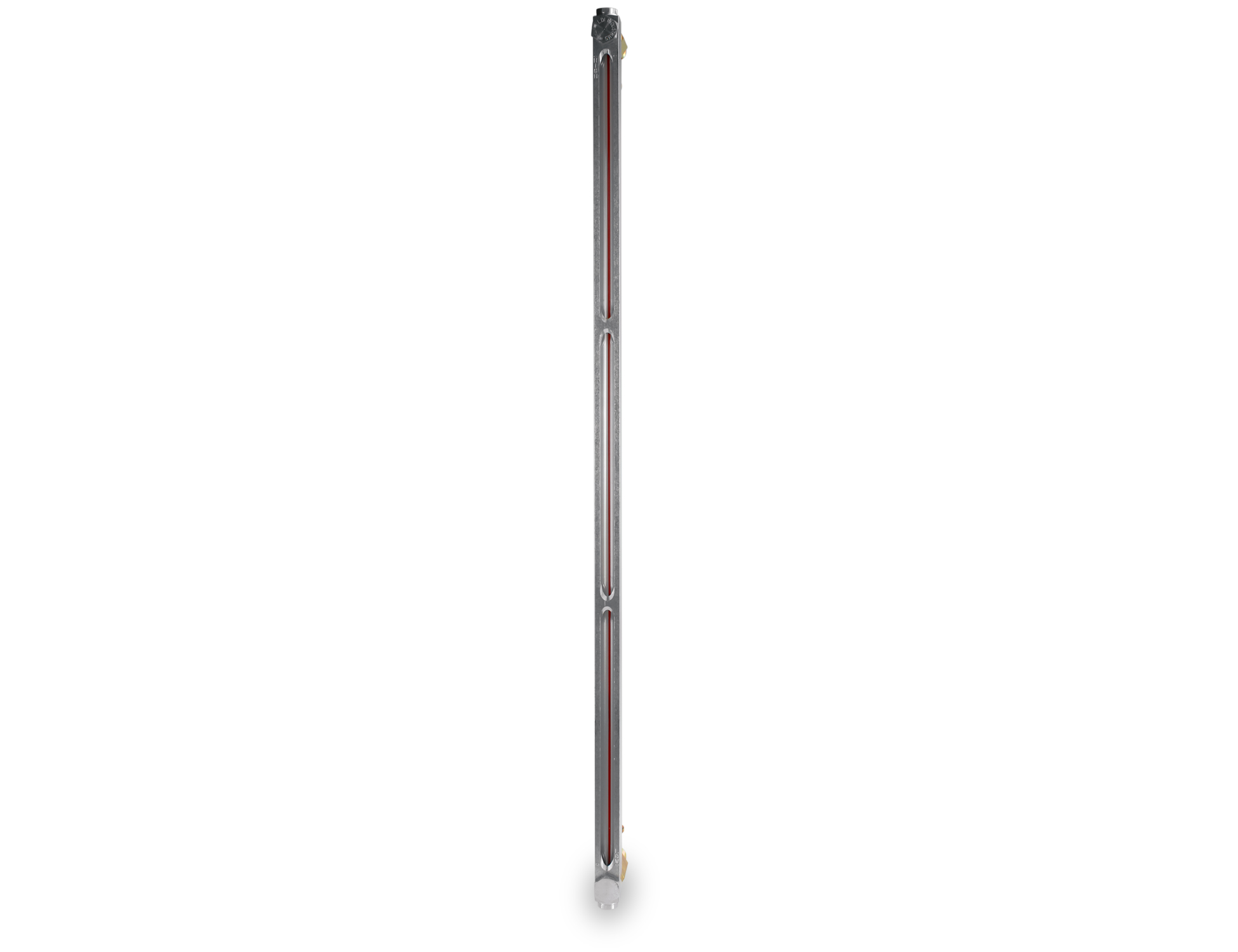

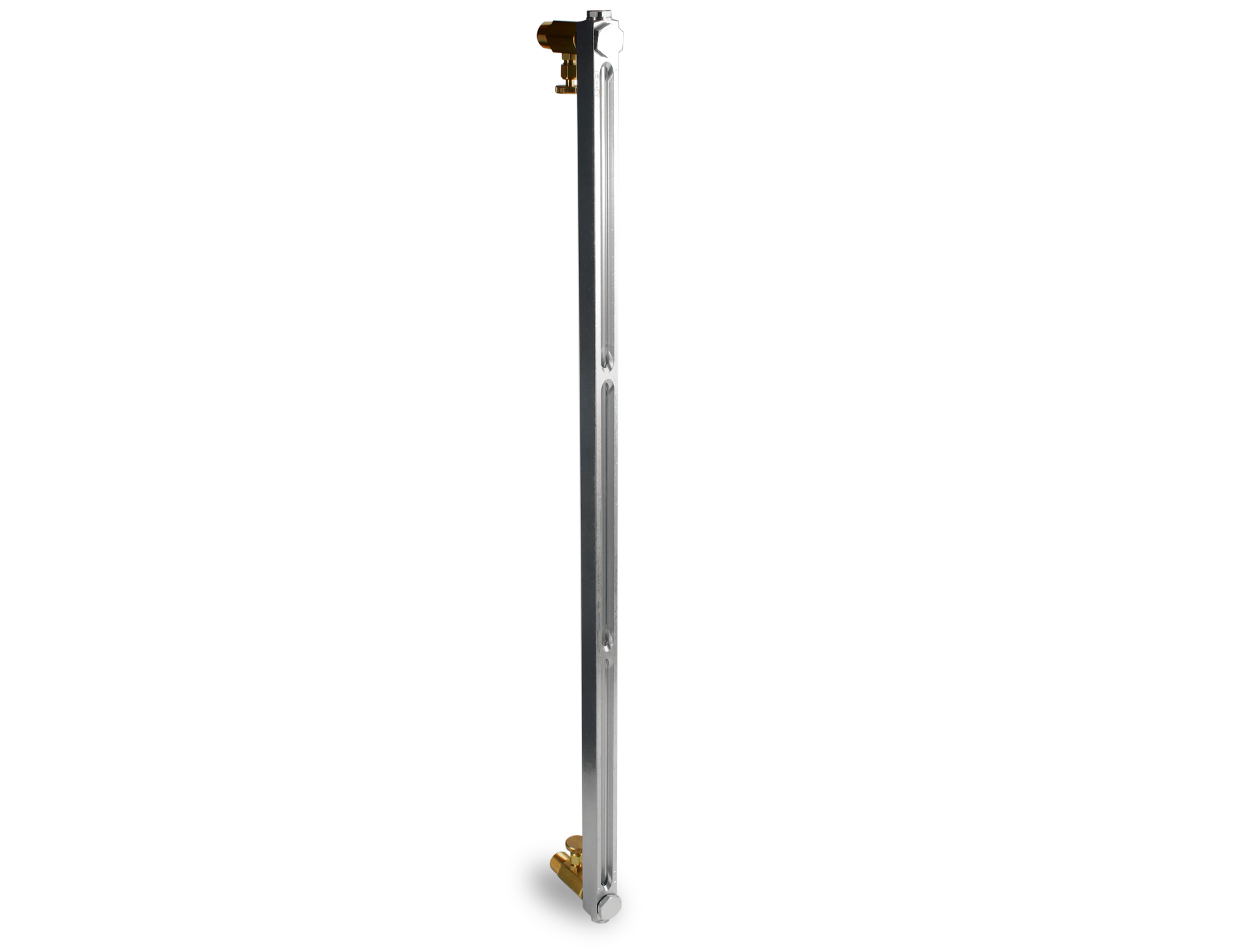

The G608 Series front mount closed circuit sight gages provide front viewing of the fluid level clearly delineated by a redline on white background integral to the glass sight all secured within an aluminum body (HIGH-LOW markings). Brass pipe adapters with integral needle valves are provided with the sight gages for direct assembly of the sight gage to NPT couplings. The needle valves allow a user to shut off flow to the sight gage allowing the sight gage to be removed from the reservoir with minimal loss of fluid.
Standard Features:
- Centerline lengths from 3 to 30 inches
- Front mount
- .90 inch SQ body machined from extruded aluminum bar stock
- Fluid level visible from front of gage (.50 inches wide)
- Viewing enhanced by redline on white background integral to sight glass
- HIGH-LOW markings on aluminum body
- 1/4, 3/8, 1/2 or 3/4 inch NPTF pipe adapters machined from brass bar stock
- Suitable for use with most hydraulic and machine lubricating oils
Standard Materials:
- Aluminum body and mounting bolts
- Brass pipe adapters (with needle valves)
- Buna N seals
- Borosilicate glass sight
Caution:
- Not recommended for use with water, steam, acidic fluids, caustic fluids and volatile fluids.
Product Options
Common Modifications Available
- Body Material: Brass
- Seal Material: Butyl, Fluorocarbon (Viton®), Ethylene Propylene (EPDM) or Silicone
- Centerline lengths
Custom Modifications Available
- Body Material: Stainless Steel
- Sight Options: Polycarbonate or Clear Borosilicate
- Surface Treatments: Clear/Color Anodize
- Fluid Level Markings: Custom Text, ISO Symbols or No Markings
- Viewing Direction: Right, Left, Front or Any Combination, Corner Viewing
Minimum quantities may apply.
